DIY Soft Router Gateway by Qotom Mini PC Q10922H6 N100 Processor 2x Marvell 10G LAN/ 4x i226V 2.5G LAN DDR5 RAM NVME SSD
- In stock, ready to ship
- Inventory on the way
SPECIFICATIONS
Application: Mini PC, Firewall, Router, VPN Appliance, Mini Server, etc.
Brand Name: qotom
Cooling Mode: Fanless Design
Dimension: 196 x 122 x 47mm
Graphics Card Type: Integrated Card
Hard Drive Capacity: 1TB
Hign-concerned Chemical: None
Memory: 1 x DDR5 SO-DIMM Socket (Up to 16G)
Memory Capacity: 16GB
Model Number: Q10922H6
Net weight: 1.26 kg
Onboard LAN: 2 x Marvell AQC113 10 Gigabit LAN, 4 x Intel I226-V 2.5 Gigabit LAN
Origin: Mainland China
Preload OS: Inactive Windows 10 for test
Processor Brand: Intel
Processor Main Frequency: Quad Cores Processor up to 3.4GHz, 6M Cache
Processor Model: Intel Alder Lake-N Processor N100
Shell Material: Aluminium alloy
Storage: 1 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 1)
Support OS: Only support Windows-based and Linux-based OS like UEFI Windows 10, UEFI Linux, OpenWrt, etc. Do not support Unix-based OS like pfSense, OPNsense, etc.
Type: Mini Desktop,MINI PC
Use: Commercial
Warranty: 12 months
Wi-Fi: No (No slot to support Wi-Fi)
Qotom Mini PC Q10922H6


Please read it before order
• Q10922H6 has 2x Marvell AQC113 10G LAN that's too new for some OS. Unix-based OS like pfSense, OPNsense and so on do not have drivers for this Marvell LAN. It only support Windows-based and Linux-based OS like UEFI Windows 10, UEFI Linux, OpenWrt, etc.
# Recommend to use OpenWrt
# Another new model Q10922G6 CPU N100 has 6x Intel i226V LAN is in production.
• Q10922H6 do not have slot for Wi-Fi. Please use external USB Wi-Fi if it's necessary for you.
• Q10922H6 do not support 2.5 inch SATA SSD/ HDD like other Qotom models.
Build a advanced Soft Router
Highly recommend OpenWrt, a Linux-based open-source router firmware, provides a customizable, modular, and lightweight platform for creating routers, gateways, and other network devices.
# Pre-install Windows 10 for test. You should re-install OS by yourself.
Build a new computer
Attaching a keyboard & monitor and reinstalling a Operating system and some softwares, it's your new personal computer, excellent POS terminal, mini server, etc.
Video Output: 1 x HD 1.4, 1 x DP, to support dual screens.
Intel Alder Lake-N Processor N100
• Cores: 4
• Threads: 4
• Max Turbo Frequency: 3.40 GHz
• Cache: 6 MB Intel Smart Cache
• TDP: 6 W
• Processor Graphics: Intel UHD Graphics
• 4K Support: Yes, at 60Hz
• Max Resolution (HD): 4096 x 2160@60Hz
• AES-NI: Support
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d):Yes

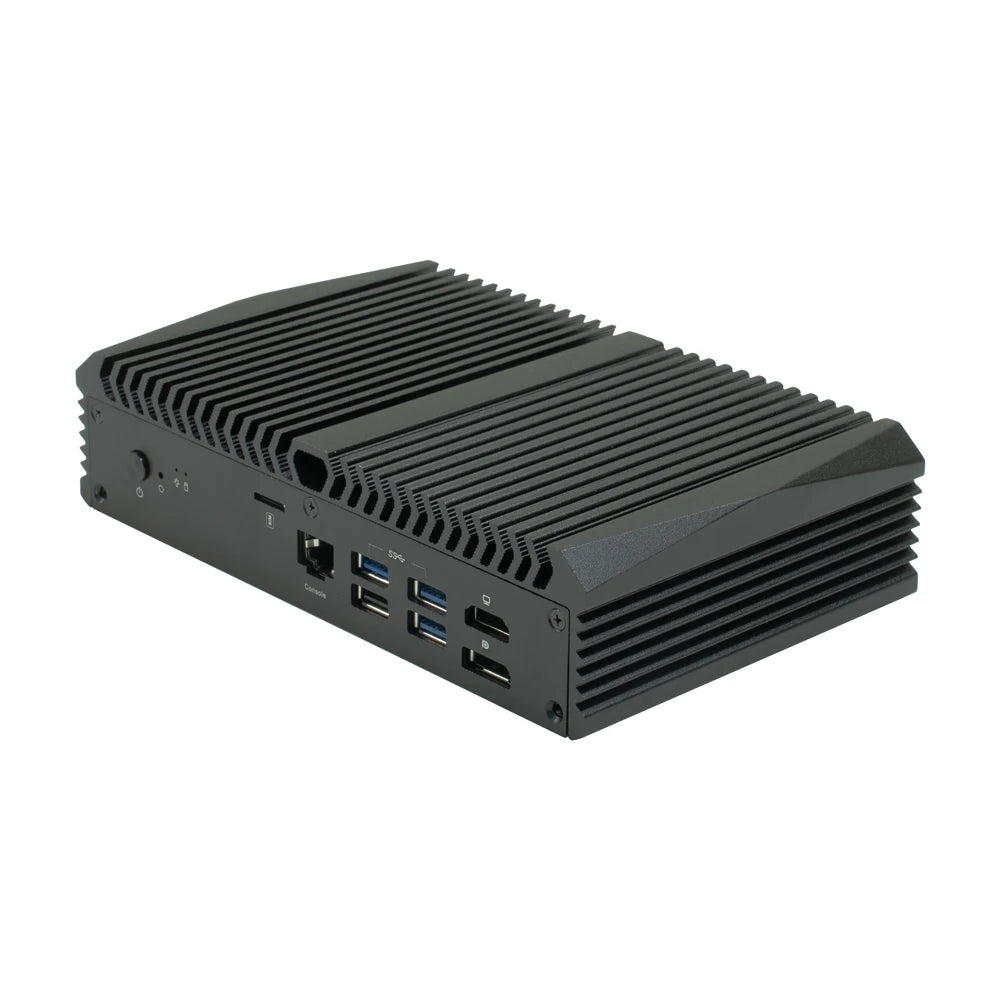

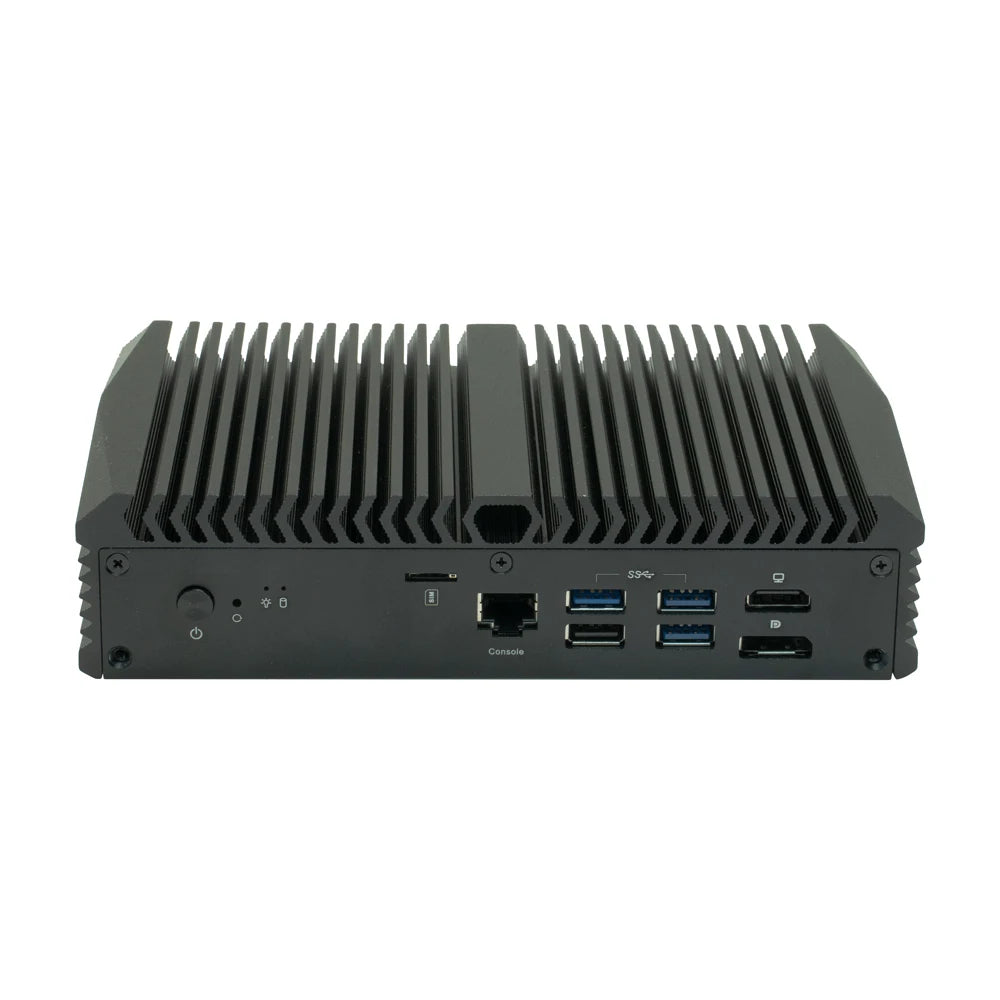

Front I/O
• 1 x Power Button, 1 x Reset Button
• 1 x Power LED, 1 x HDD LED
• 1 x Nano SIM Slot
• 1 x RS-232 Port (RJ-45)
• 1 x HD 1.4, 1 x DP
• 3 x USB 3.0, 1 x USB 2.0

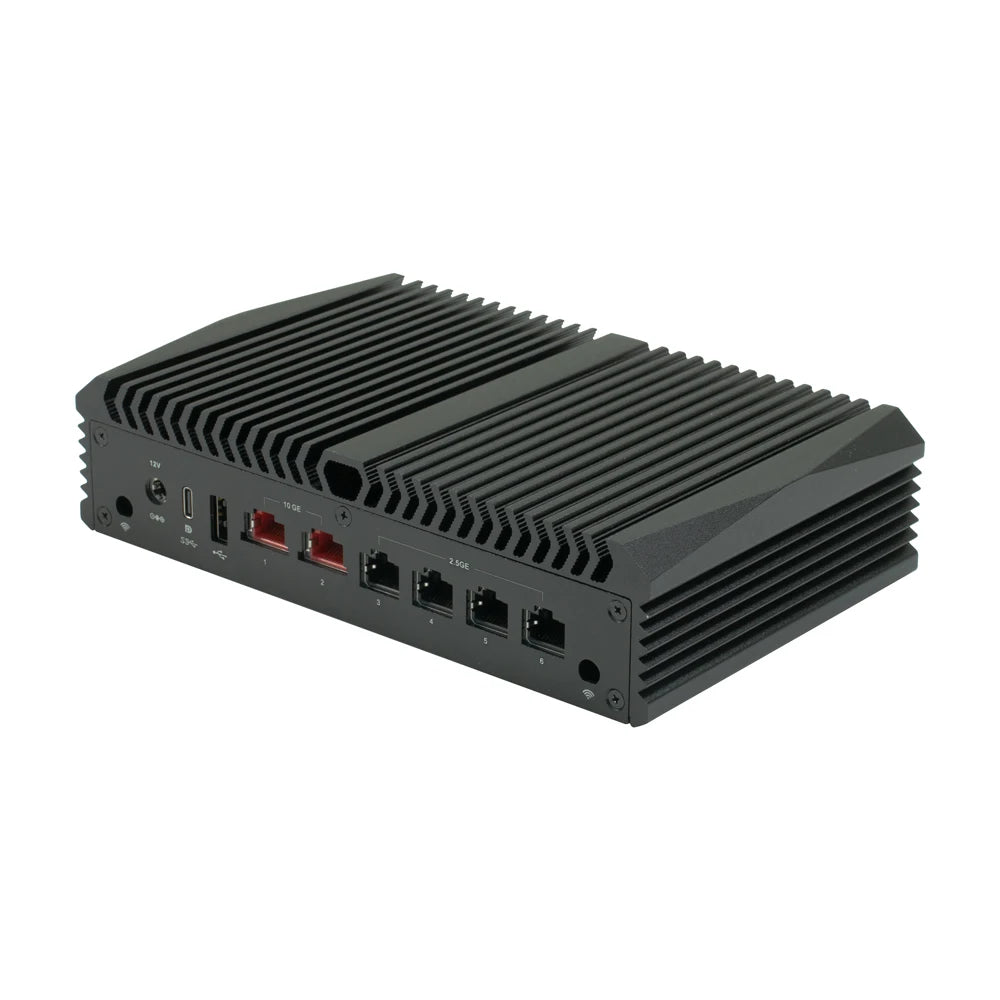

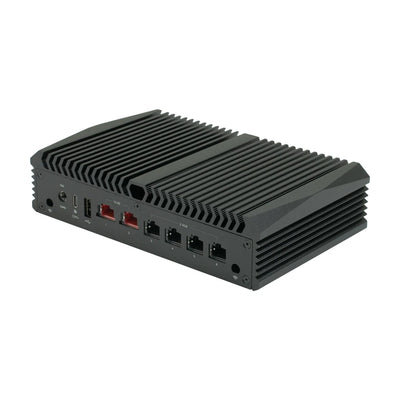

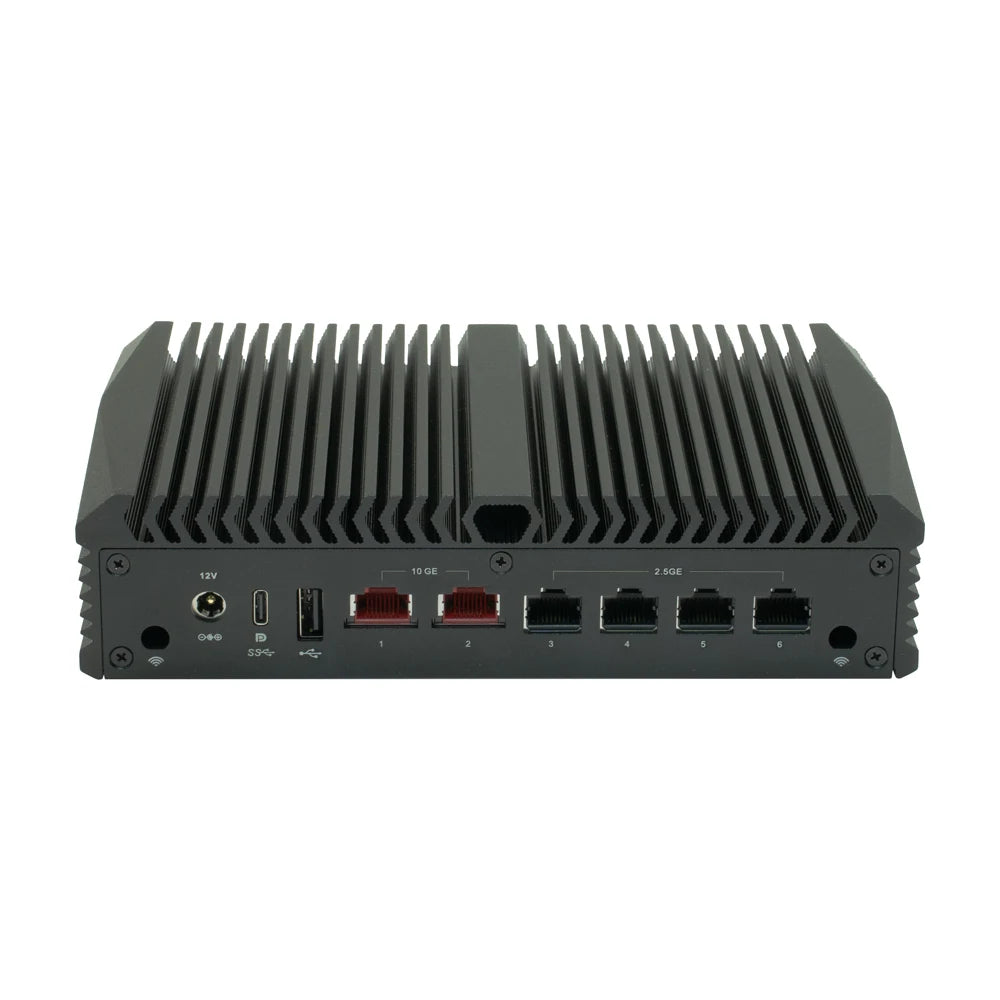

Rear I/O
• 1 x DC Jack
• 1 x USB 2.0
• 1 x Type C (USB 3.0, Display Port)
• 2 x Marvell AQC113 10 Gigabit LAN
• 4 x Intel I226-V 2.5 Gigabit LAN

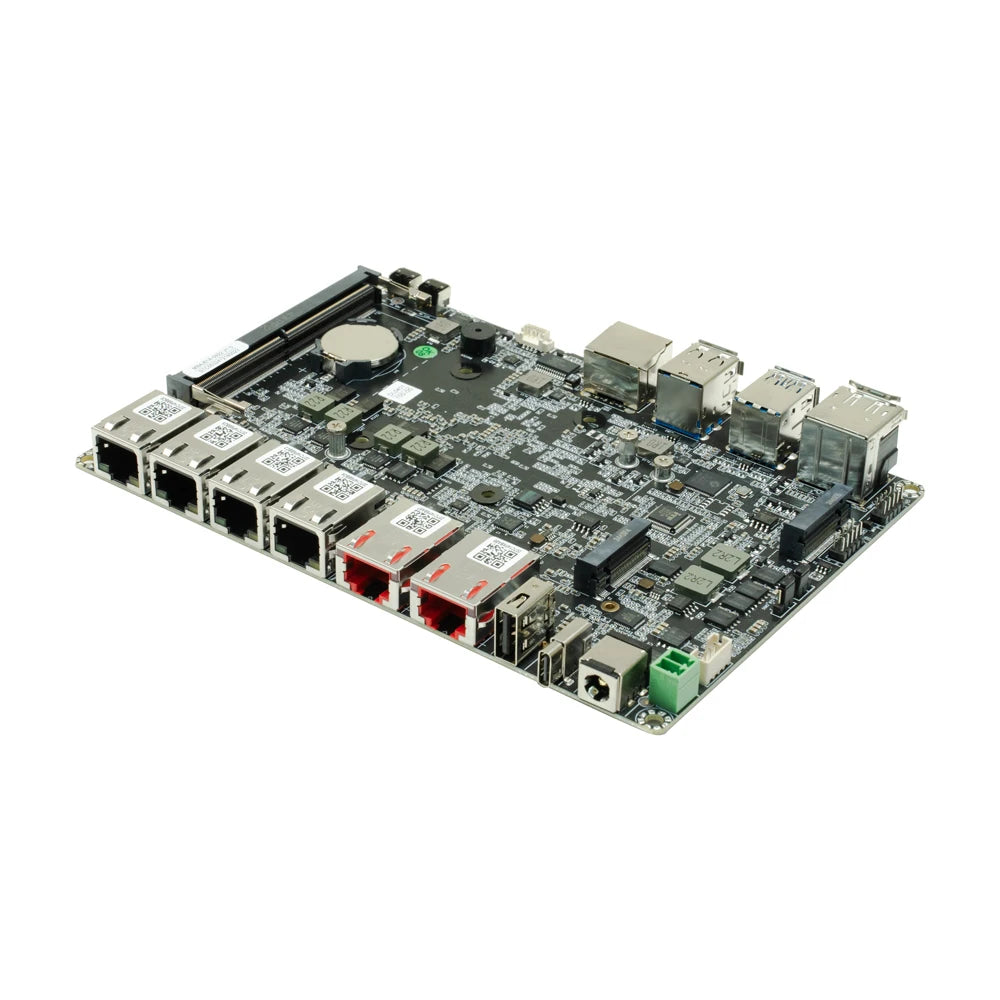

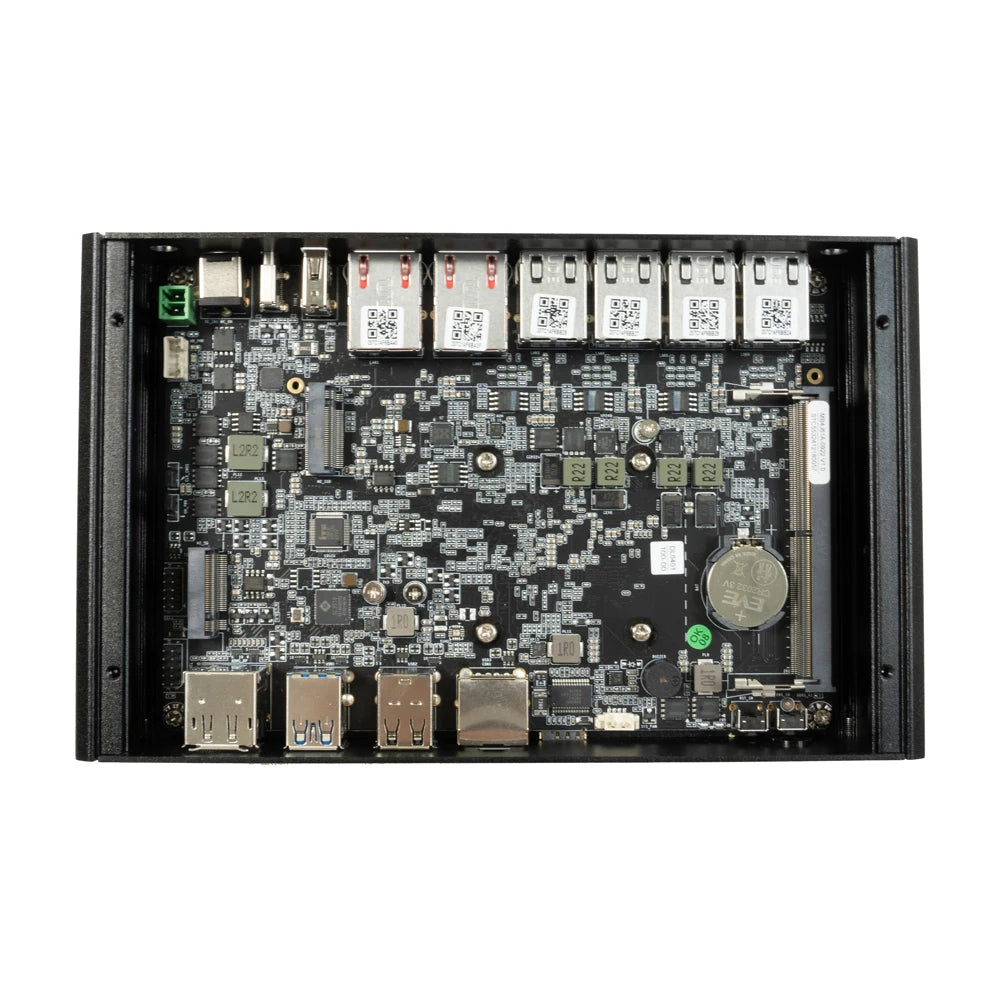

Expansion
• 1 x M.2 for 4G/5G (B key, Type: 3042/3052)
• 1 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 1)
• 1 x DDR5 SO-DIMM Socket (Up to 16G)
• 1 x SIM Card Slot
• AutoStart Jumper, 1 x 3Pin, Pitch 2.54mm
• CMOS Clear Jumper, 1 x 3Pin, Pitch 2.0mm
Packing
• 1 x Mini PC
• 1 x Power supply: adapter and plug (US/ UK/ EU/ AU/ IT)
• 1 x VESA bracket & screws
• 1 x Color packaging box
