ERYING DIY PC Gamer Motherboard with Onboard Core CPU Interpose Kit i9 13950HX 24C32T DDR5 RAM Desktop Set Computer placa mae
- In stock, ready to ship
SPECIFICATIONS
Application: Desktop
Audio Channels: 5.1

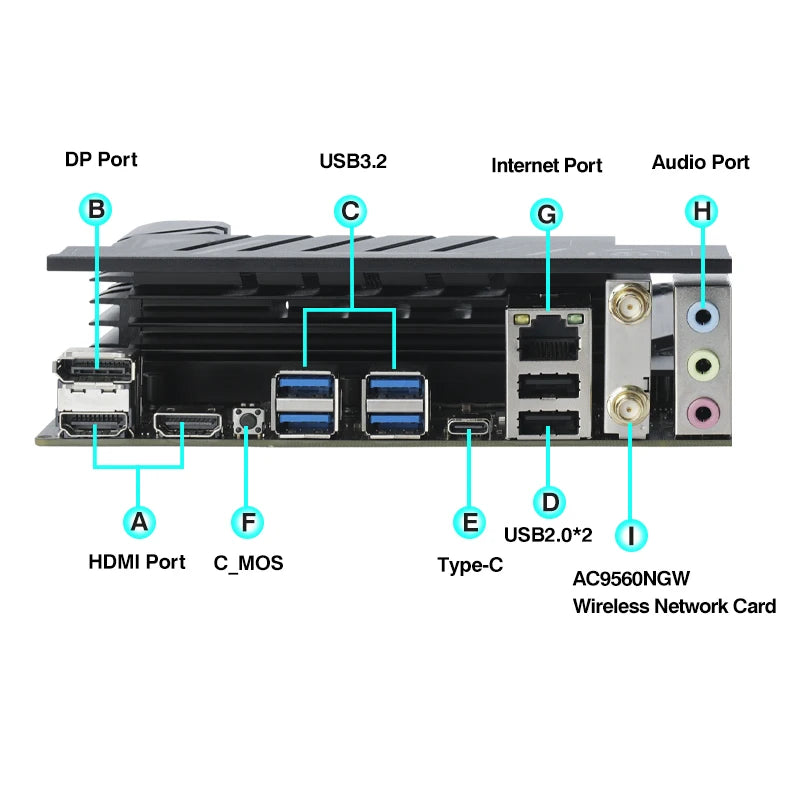

Back I/O Ports: 1x RJ45,WIFI,3 x Audio Jacks,4x USB 3.2/3.1 Gen 2,USB Type-C,Function Button,Displayport,HDMI 2.0
Brand Name: ERYING
Certification: RoHS,FCC,CE
Chipset: Intel Others
Chipset Manufacturer: Intel
Form Factor: Micro-ATX
Hign-concerned Chemical: None
Max LAN Speed: 2500Mbps
Maximum Ram Capacity: 64 GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 3
Number of PCI: 0
Number of PCIe x 1: 1
Number of SATA Ports: 4

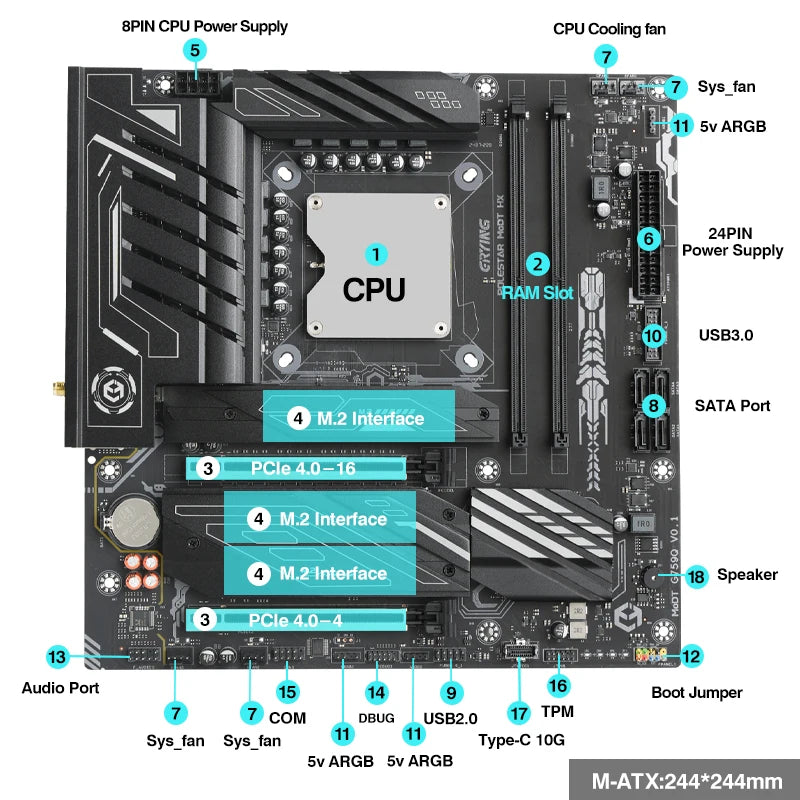

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,SPI TPM Header,Addressable RGB Header,Chassis(SYS) Fan Connector(s),USB 3.0 Connector,OthersConnectors & Header,Speaker Connector,USB 2.0 Connector,COM Port Header,System Panel(s) (Chassis intrusion header is inbuilt)
Onboard LAN: 1x RJ45,WIFI (AC)
Origin: Mainland China
PCI - E standards: PCI - E 4.0
Package: Yes
Processor compatibility: 13th Intel Core i9
Quality Certification: ce,ROHS,FCC
RAID Supported: no
Socket Type: Onboard CPU
Special Function: None
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR5
Support USB Type: USB 2.0,USB 3.0,USB 3.2 Gen1
Supports M.2 SSD: 2242,2280,2260
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,DESIGN,Video Production,HPC
With CPU: Yes
Notifications before place order:
This is our updated version for the HX series motherboard.
We have improved the RAM compatibility, and increased the maximum frequency of the memory.
From our factory's test results, this new version HX series motherboards support using 16GB/24GB(Single one slot) to start and work stable under 6400Mhz.
Due to there are many different RAM brands in the world, we not offer guarantee for the RAM compatibility.
For those customers who want to use 32GB or over 32GB RAM, Please choose and test it by yourself.
The issues of memory capacity, frequency, and compatibility, can NOT be used as reasons or basis for disputes.
By placing an order, means you agree to this clause.
