SPECIFICATIONS

Brand Name: BRAVEMAN

Case Size: 333*145*275

Case Weight: 2.9

Chassis Type: Desktops

Form Factor: Mini-ITX

Front Ports: USB

Hign-concerned Chemical: None

Material: Aluminum Alloy,Acrylic

Model Number: B2Plus

Origin: Mainland China

Power Model: SFX

RGB Support: NO RGB

Type: Vertical

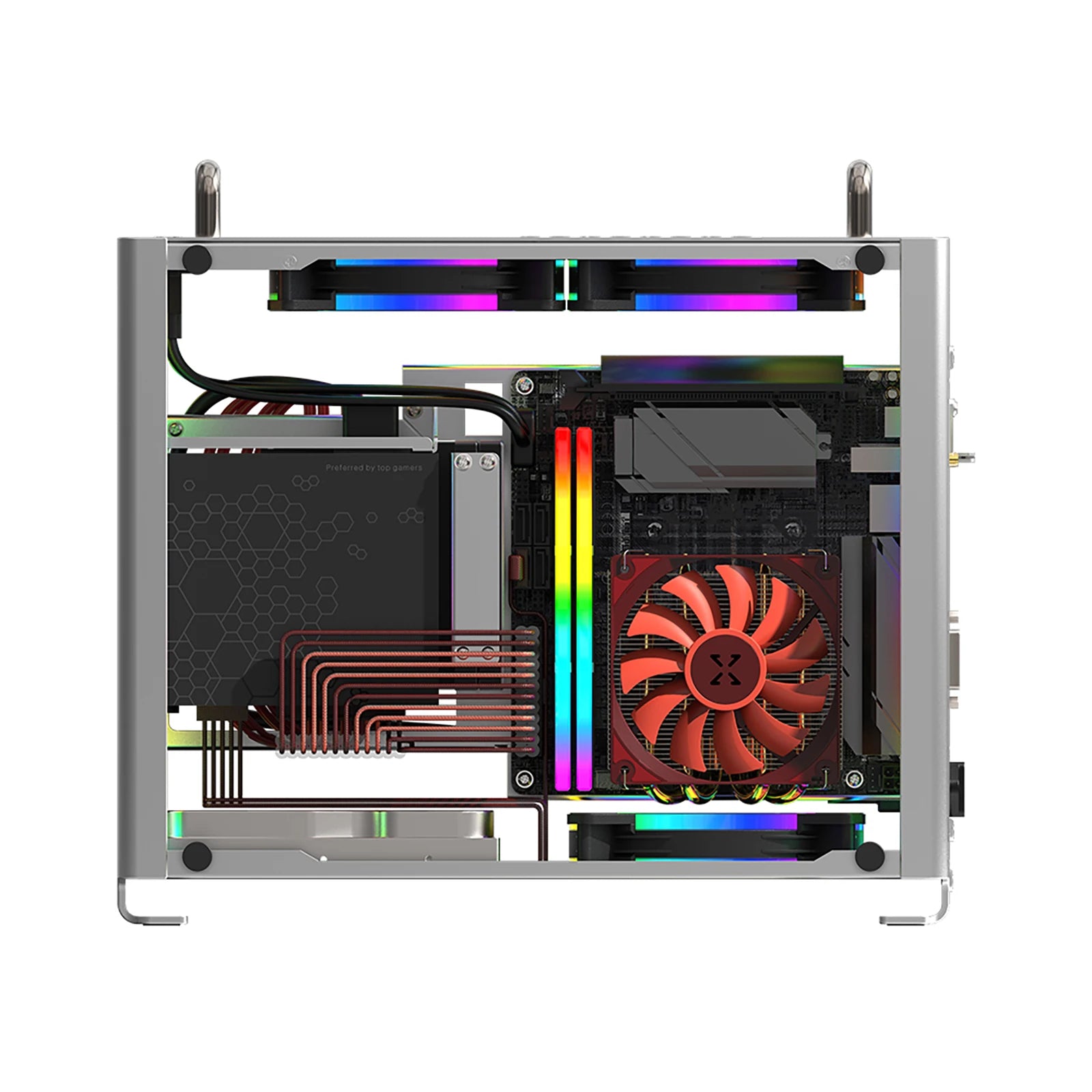

Hardware Supporting specifications

1.Motherboard: ITX Motherboard 170*170mm

2.CPU radiator 240 water-cooled/down pressure limit height 59mm

3.Memory height limit 59mm

4.Graphics card within 326*154*57mm size

5.Power supply SFX/SFX-L power supply

6.Hard disk: 2pcs 2.5-inch hard disk/pc 3.5-inch hard disk

Case Parameter

1.Case Capacity: 13L

2.Material: AL-MG high strength magnesium aluminum alloy

3.Case Color: Anodized silver

4.Frame thickness: 3mm

5.Other components thickness: 1.5mm

6.2 Side panel thickness: 3mm

7.Cooling method: air cooling(Top 12025 fan position*2, 12025 fan position at the bottom *2, Top/bottom/both sides heat dissipation holes)& water cooling(240 water cooling, 12025 fan position at the bottom *1, Top/bottom/both sides heat dissipation holes)

8.Wire: switch wire+ power supply extension wire+ single 2 in 1 USB3.0 wire

9.Product size: 333*145*275mm

10.Handle Height :31mm

11.Net weight: 1.9KG

12.Gross weight: 2.8KG(including package)

13.Packing size: 220*385*430mm

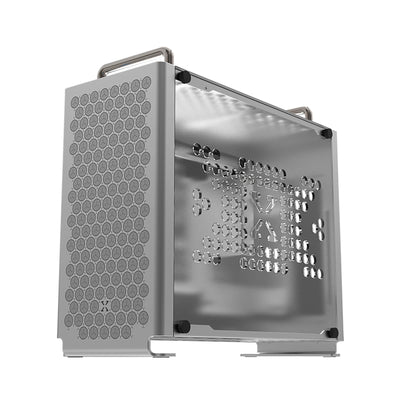

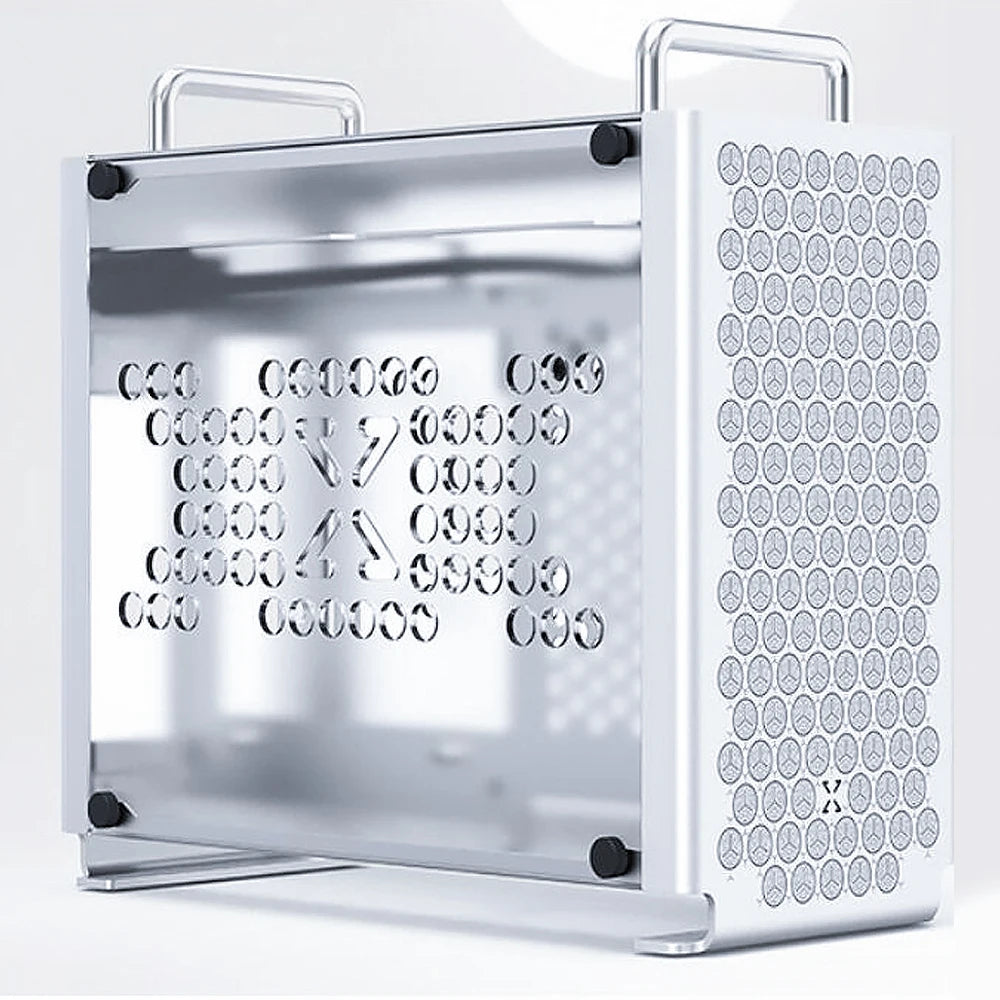

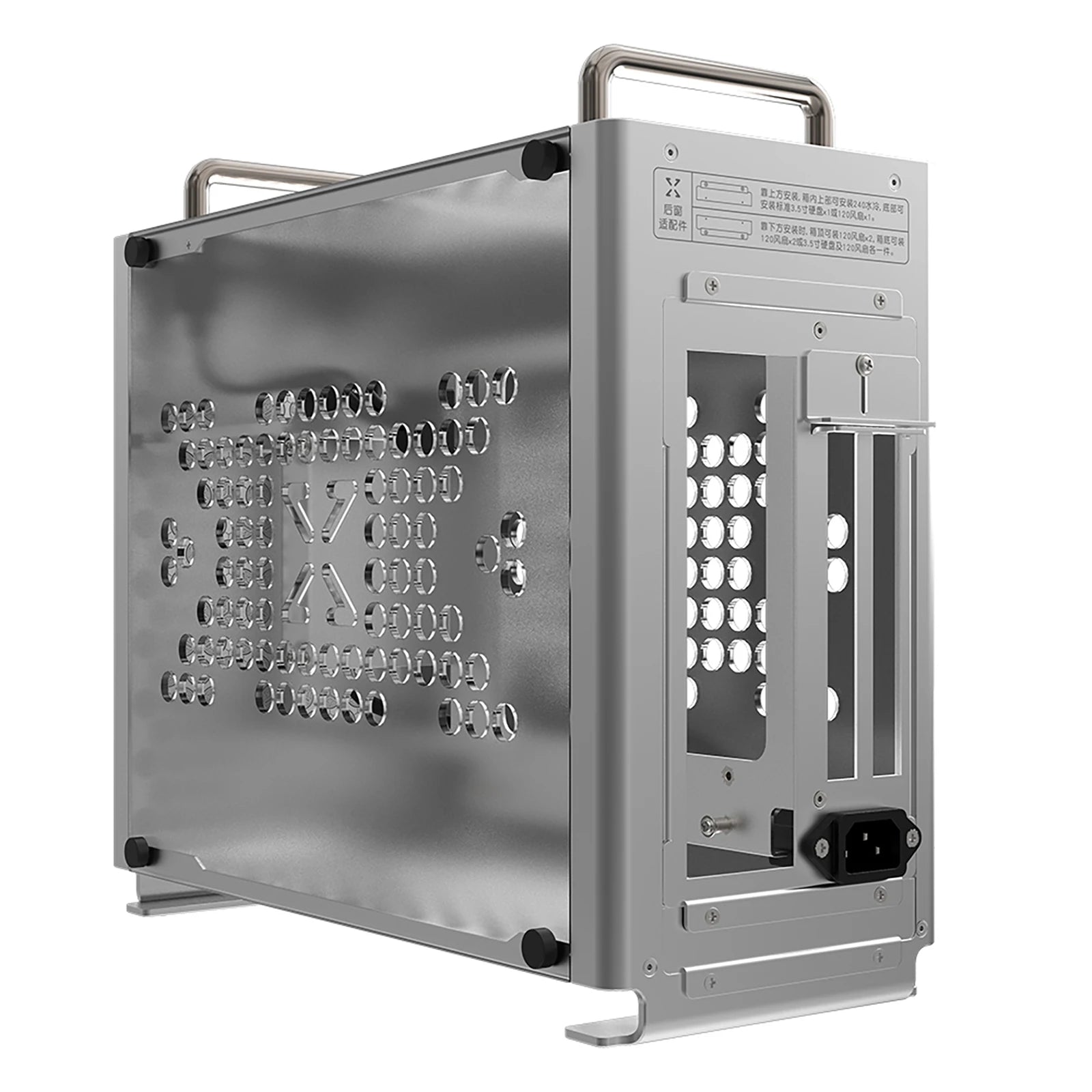

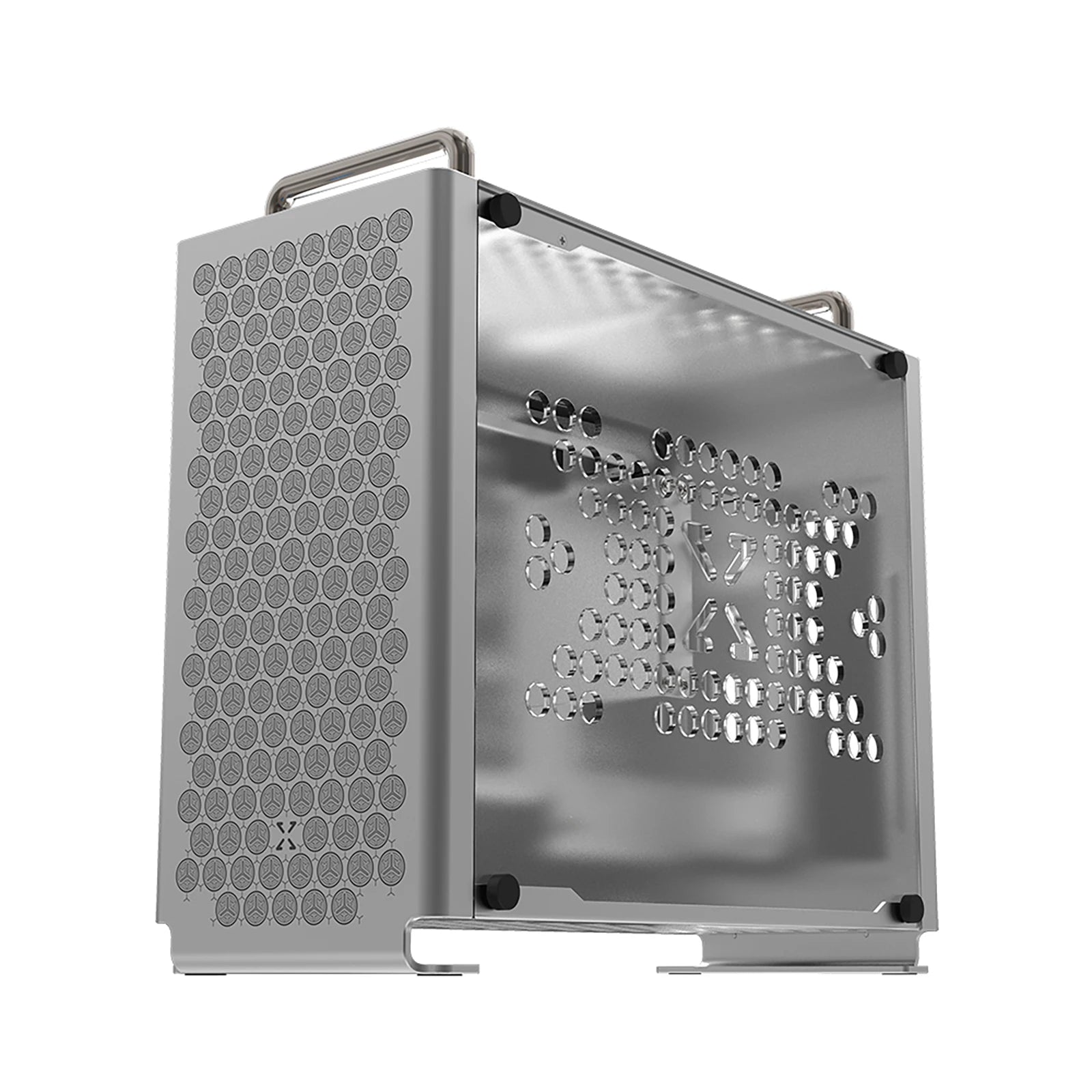

                                Acrylic Side Panel

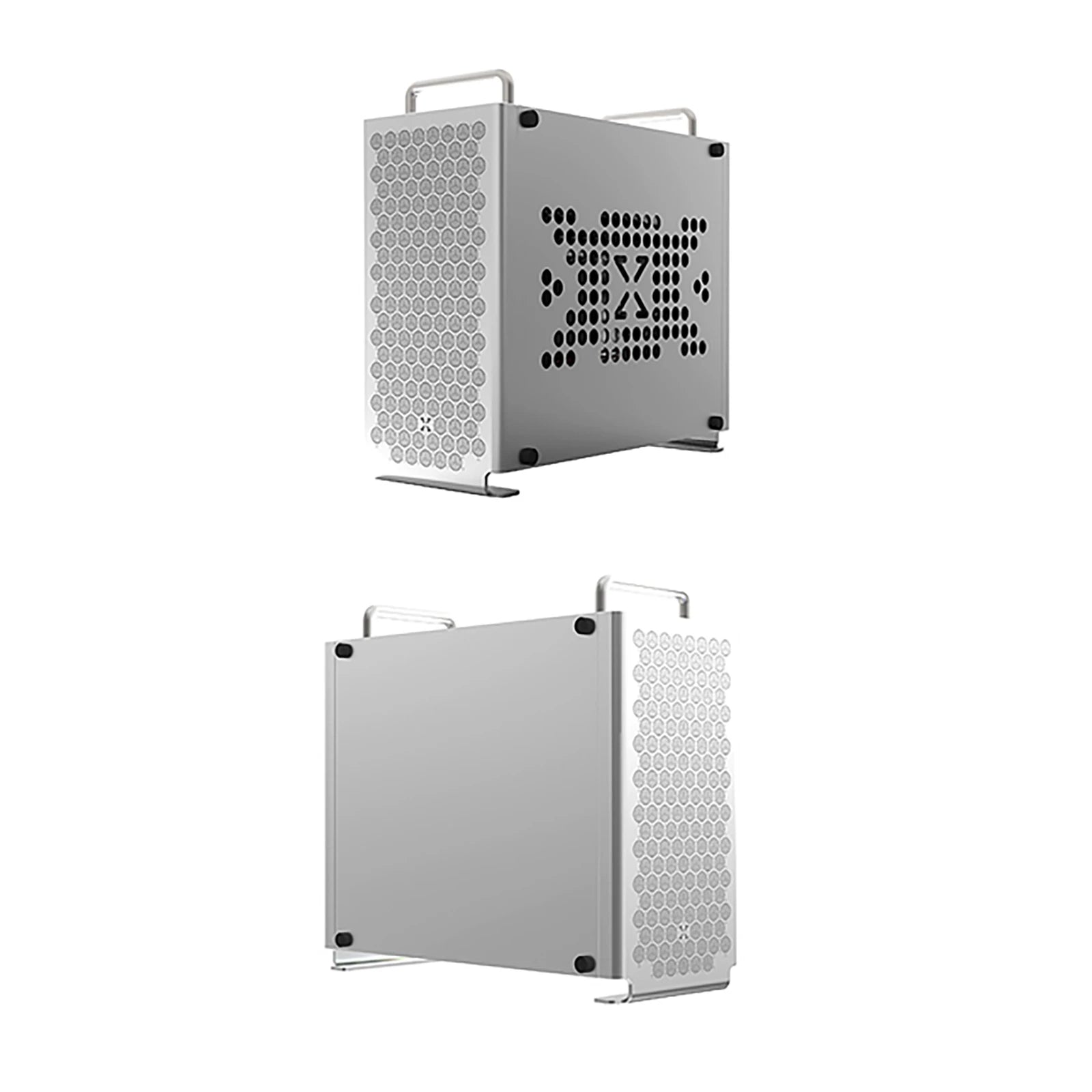

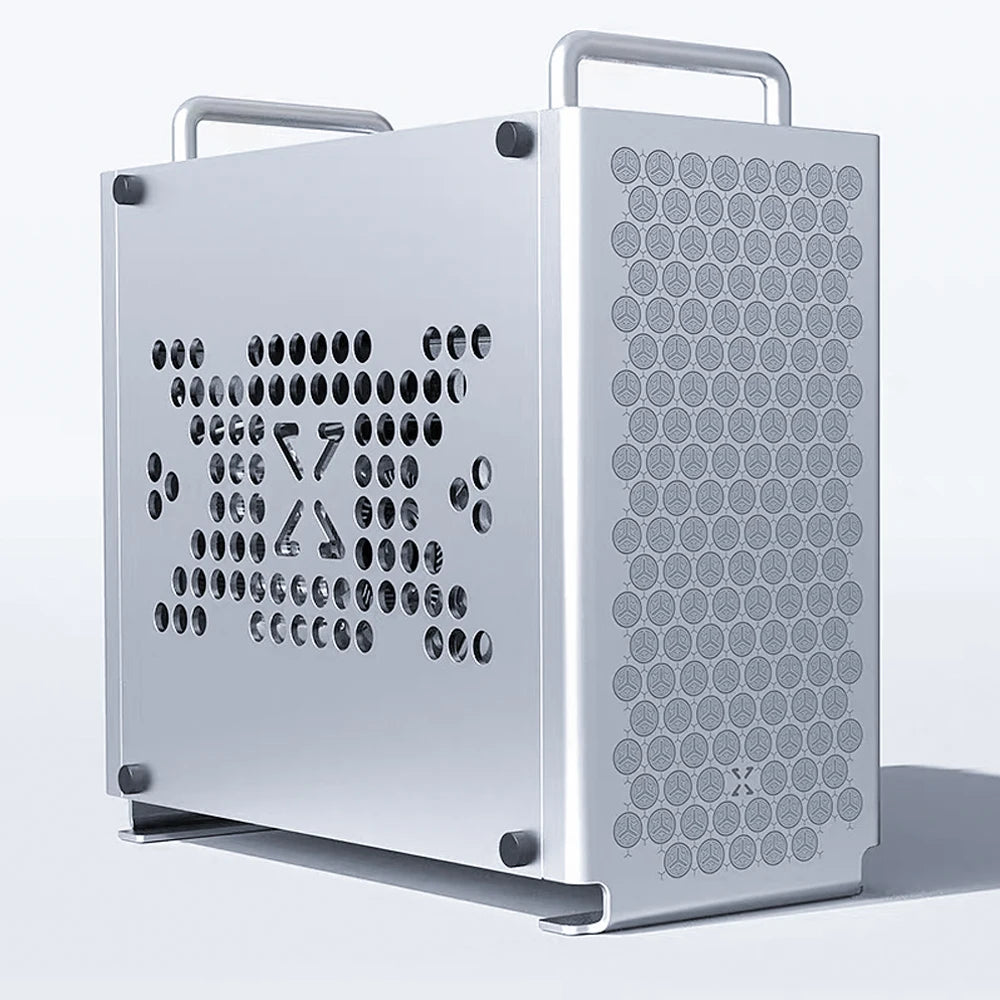

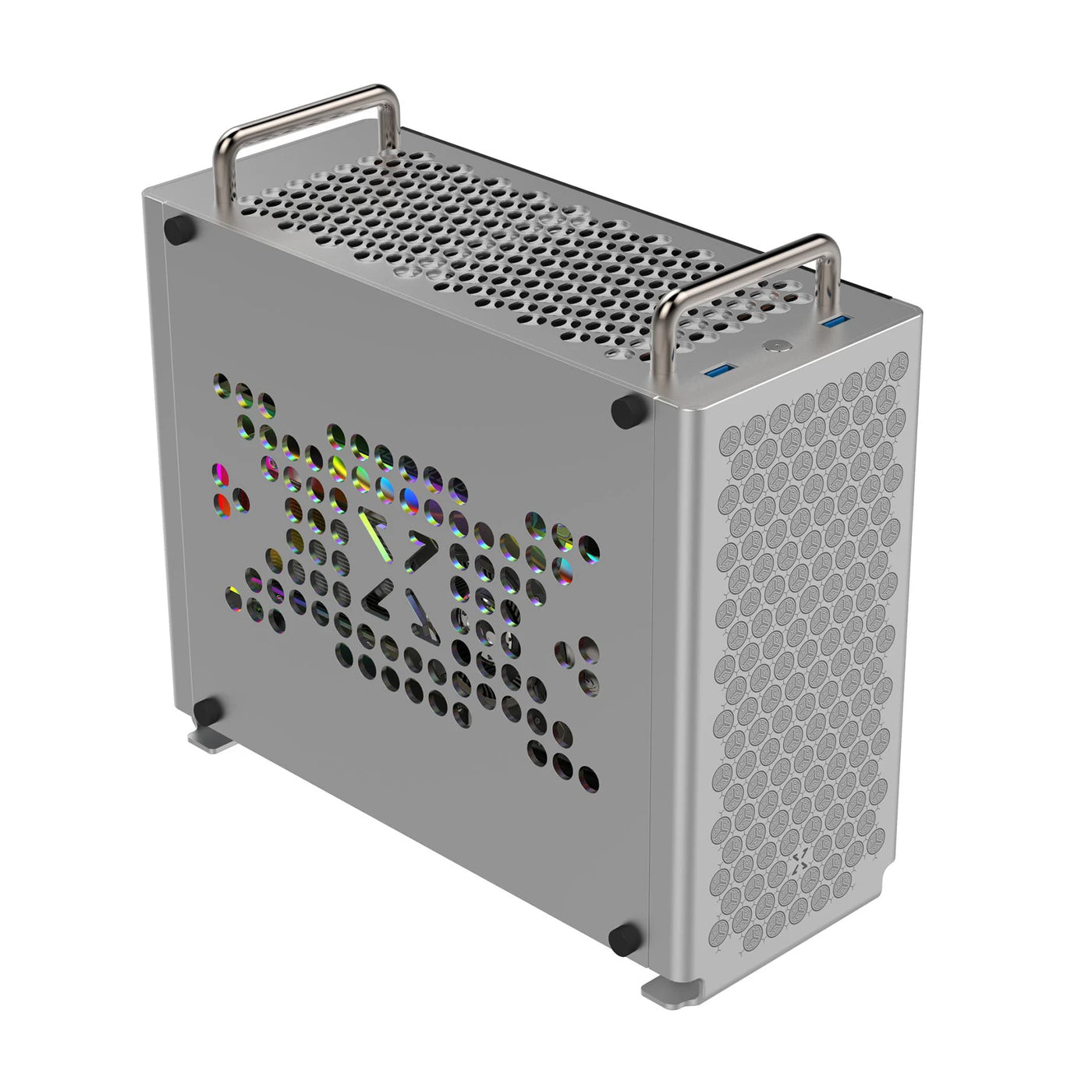

Aluminum Side Panel

Package Including:

Case x 1pc

Switch Wire x 1pc

Graphics card extension Wire x 1pc

Single 2 in 1 USB3.0 wire
